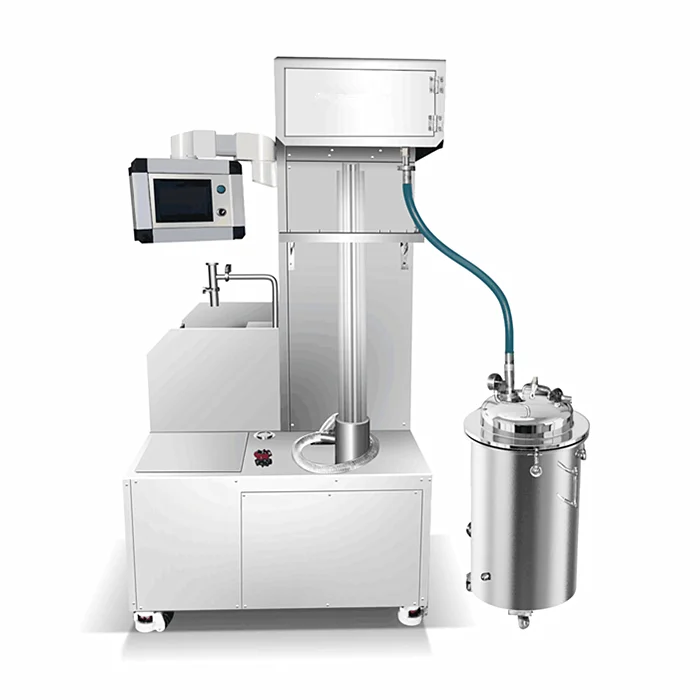

Automatic Dropping Pill Machine for Cigarette Beads

Product description
Product Description
Technical parameters
Package contents
liquid
Pellets diameter (mm)
Φ2-12
Production capacity
15-25 capsules / second
Loading difference
±2%
Drip irrigation volume (l)
0.6
Content filling volume (l)
0.35
Power supply system
380V 50Hz
Equipment power consumption (220v)
6kW
Overall dimensions (mm)
700*520*1800mm
Oil temperature
Paraffin oil is light paraffin oil with 10% vegetable oil
Weight (kg)
200

Features and Functions




1.Equipped with temperature control device to adjust and control the temperature according to the production process.

2.This machine is equipped with a high-speed loading device, which can load at high speed according to different standards and achieve stability and reliability.
3.The paraffin oil circulation system has a refrigeration temperature control device, which can adjust the temperature according to the production process requirements.
4.The main body of this machine is made of stainless steel and meets the requirements of GMP.

5.This machine can use the manual knob to control the thickness of high-speed rubber skin (determined by the size of the pill) according to the dynamic viscosity of the glue.




Working principles


1. The cover of this tablet press machine is made of stainless steel with close type. The inner tablet surface is also made of stainless steel materials which could keep surface luster and prevent from cross pollution, meets GMP requirement.

2. The compression area is enclosed with transparent organic glass. Through the transparent protective cover can see the mechanical operation of the situation clearly, and can open all of them, easy to cleaning and maintenance.

3. Speed is infinite speed, can be adjusted.

4. Mechanical and electrical integration, variable speed operation.

5.Transmitting system is sealed in the oil box under the main machine, which works separately, not pollution each other and easy to send out heat and resist grinding.

6. Machine equipped with suction machine which could absorb the powder of working area.

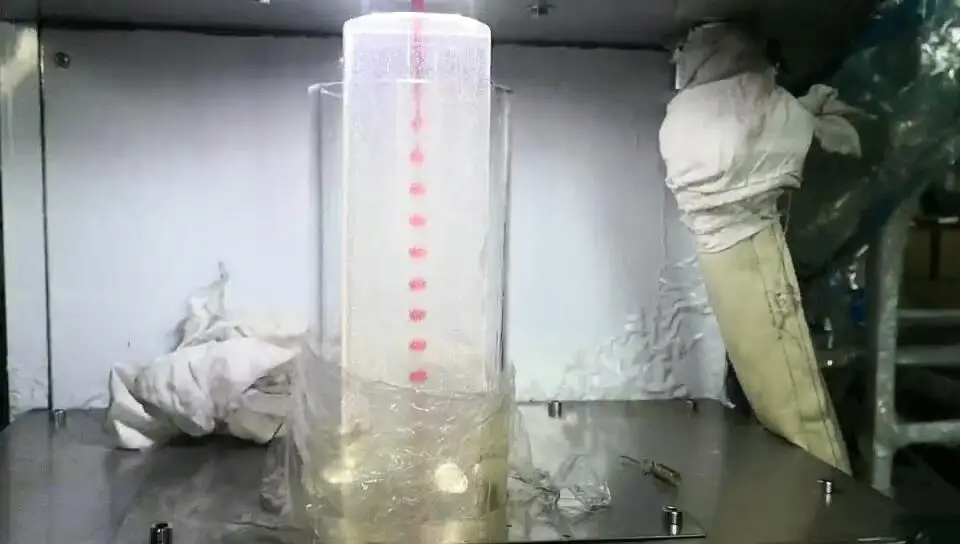

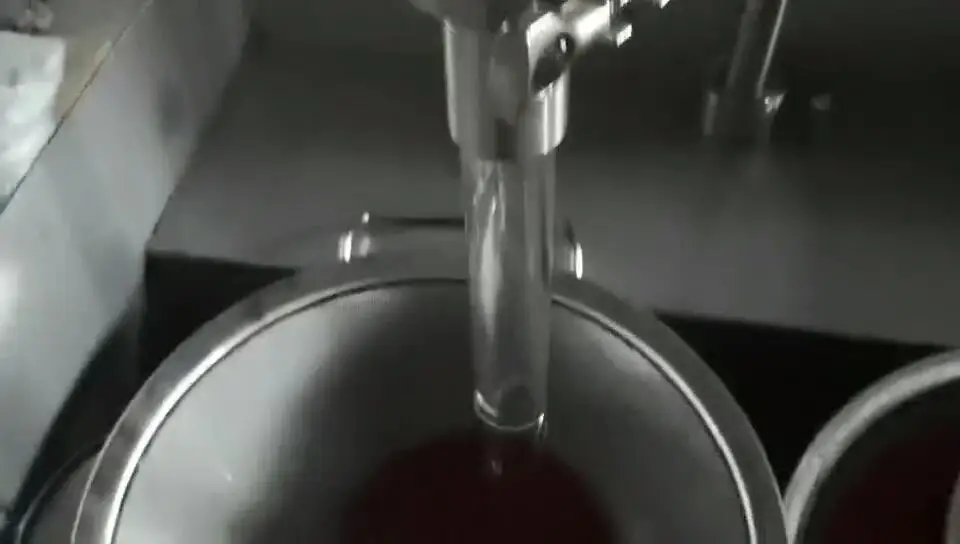

Working Steps

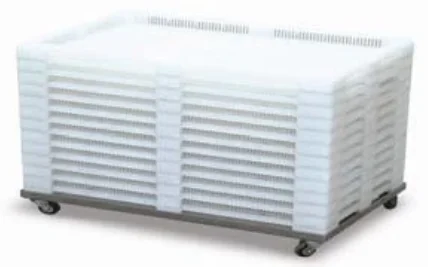

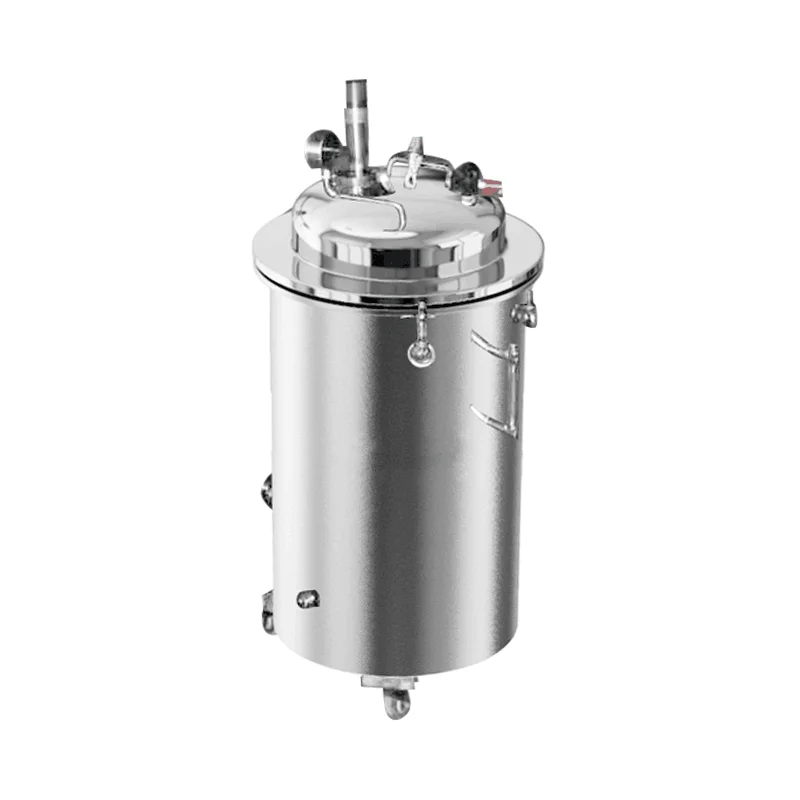

Auxiliary machine

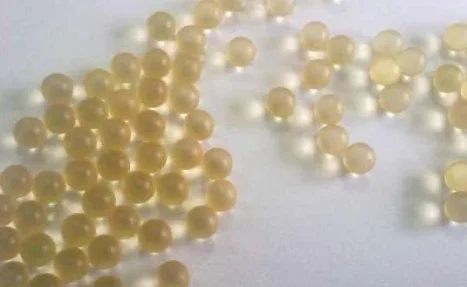

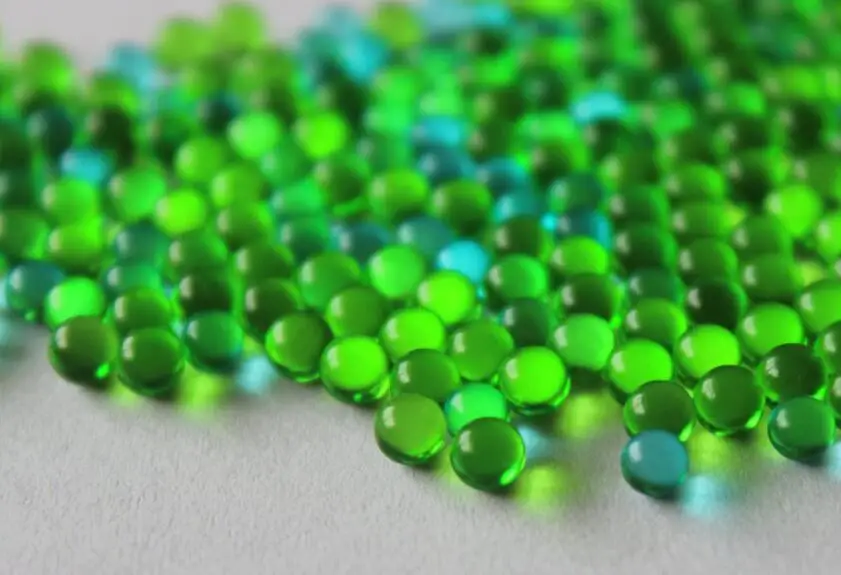

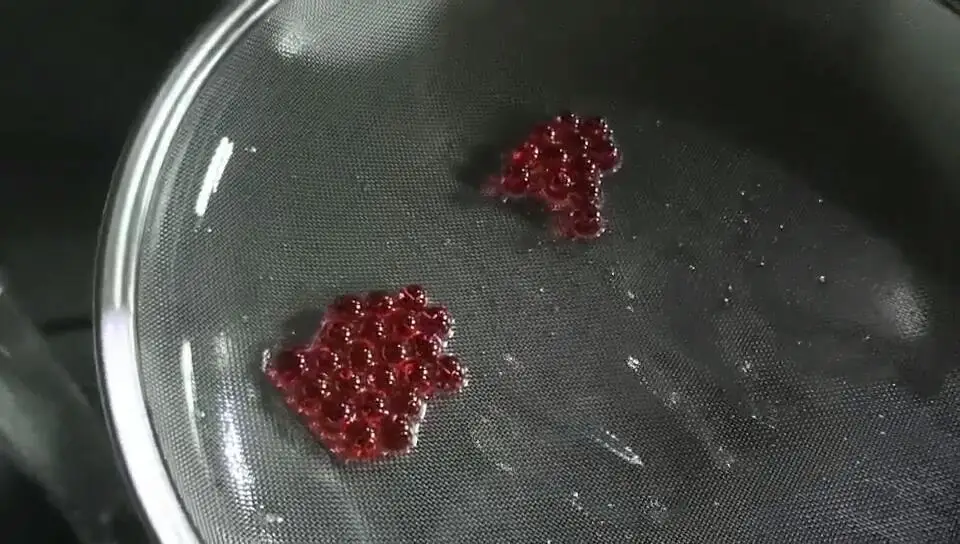

Finished Product Images
