HTSYS-5 Pharmaceutical Fully Automatic Small Softgel Encapsulation Machine

Focus on professional manufacturer and supplier for pharmaceutical machinery, pharmaceutical packing material company, who is standing firmly with a good reputation in the industry of China pharmaceutical machinery.

Product Details

Product Description



Small
Softgel Encapsulation Machine
HTSYS-5 soft capsule machine is only the smallest model laboratory soft capsule machine, carefully designed in full accordance with GMP requirements.The aircraft use a variety of automatic control technology, simple operation, stable performance, reliable work. The whole machine adopts optimal design, full-featured, compact structure. The equipment package includes a host computer and control system, a dryer, a plastic tank, a mold and a movable platform, the whole equipment elegant wood, in full compliance with the GMP requirements, small footprint package of equipment (2m²), applicable to a variety of industries such as medicine, food, cosmetics, health care products.

Features

1.Food, health care products, new dosage forms of Chinese medicine soft capsule technology.
2.Teaching internship students demo.
3.The soft capsules varieties of trial
4.Soft capsule production line simulation experiments to obtain new varieties of soft capsules to produce a full set of process parameters guiding mass production.
Technical Parameters
Model
HTSYS-5
Die roll size
64mm(Dia)x75mm(Length)
Speed
3.5RPM(5RPM Option)
Pistion number
6 Ea
Cooling drum size
100mm(Dia)x150mm(Length)
Main Motor
3HP,Speed Controller
Electric Spec
220V
Required power
1.5Kw
Dimension
820mmx640mmx1200mm
Material
SUS 316 for Contact area
Output
5000grain/h

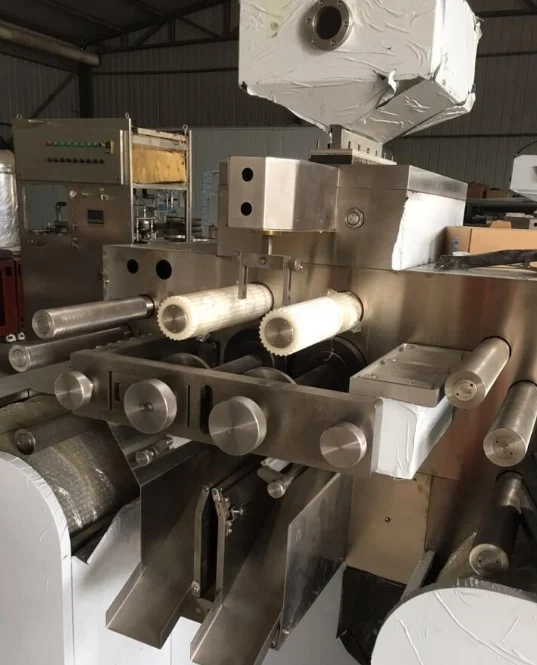

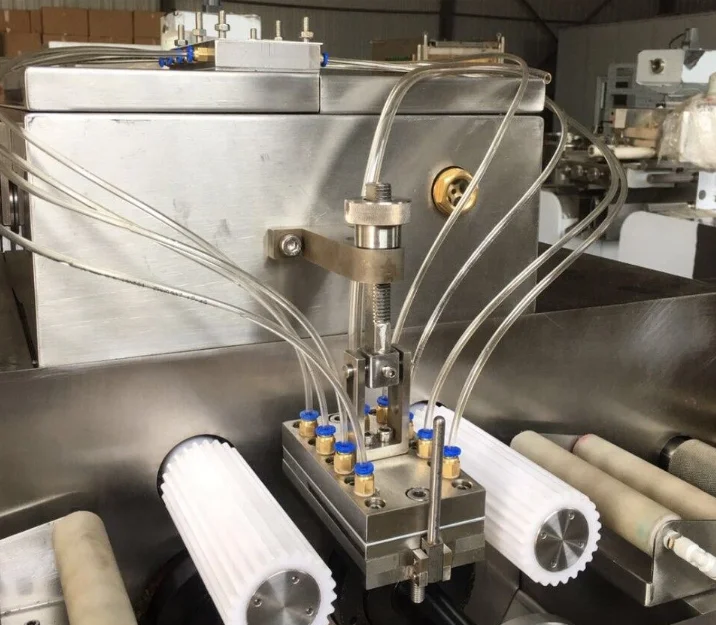

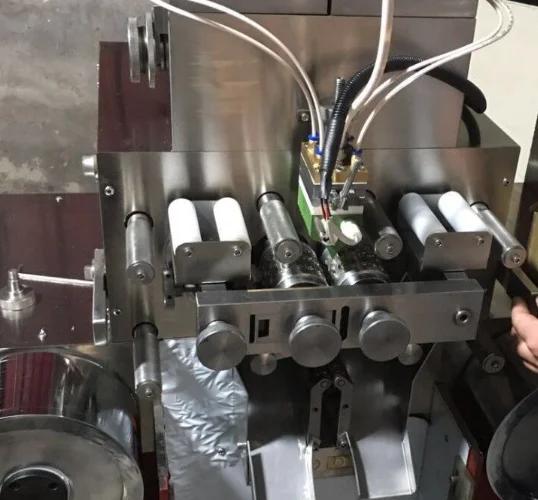

Details of Main Part
  •





Detailed Images
HTSYS-5 Type machine is usually be used for filling the E- Vitamin,Cod Liver Oil,Pharmaceutical Capsules.
Capsule Size & Shape
